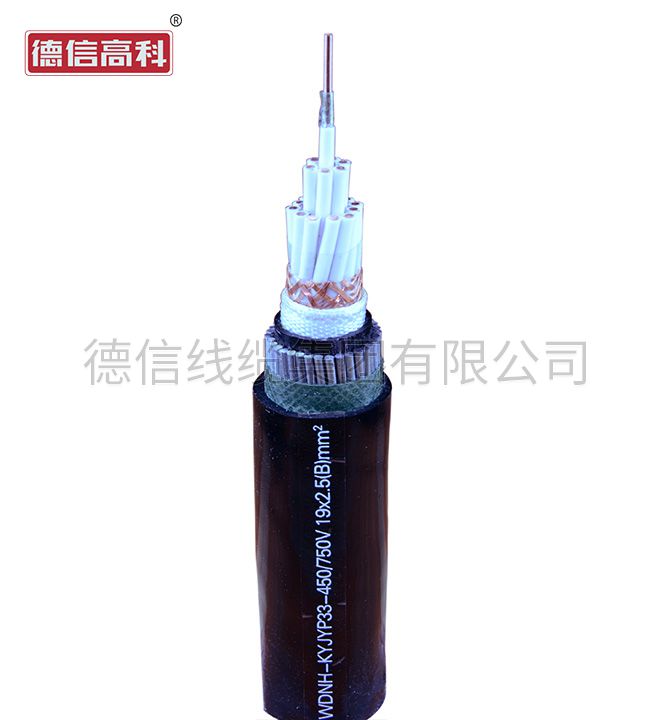

控制電纜 EDZN-KYJYP33
執行標準
GB/T9330-2008塑料絕緣控制電纜
產品應用
本產品用于交流額定電壓450/750V及以下配電裝置中的控制線路。
產品詳情
使用特性
1）電纜導體的長期允許工作溫度：聚氯乙烯絕緣為70℃，電纜的敷設溫度應不低于0℃。
2）敷設安裝允許彎曲半徑：
a 無鎧裝層的電纜，應不小于電纜外徑的6倍；
b 有鎧裝或鋼帶屏蔽結構的電纜，應不小于電纜外徑的12倍；
C 有屏蔽層結構的軟電纜，應不小于電纜外徑的6倍。
產品性能
1）導電線芯分為三種：第一種（A），第二種（B）適用于固定敷設（第一種是實芯導體，第二種是絞合導體）；第三種（R）是絞合軟導體，適用于移動要求的軟電纜。
2）導體結構及直流電阻應符合表1規定。
3）絕緣線芯識別可采用顏色標志或數字標志，絕緣厚度及絕緣電阻應符合表2規定。
4）絕緣線芯應經受工頻火花，試驗電壓有效值為6KV。
5）電纜能經受交流50HZ、3000V，5min的耐壓試驗。
表1 導體結構及直流電阻
| 標稱截面（mm2） | 導體結構 | 20時導體直流電阻Ω/KM≤ | ||
| 種類 | 根數/單線標稱直徑 | 不鍍錫 | 鍍錫 | |
| 0.5 | 3 | 16/0.20 | 39.0 | 40.1 |
| 0.75 | 1 | 1/0.97 | 24.5 | 24.8 |
| 0.75 | 2 | 7/0.37 | 24.5 | 24.8 |
| 0.75 | 3 | 24/0.20 | 26.0 | 26.7 |
| 1.0 | 1 | 1/1.13 | 18.1 | 18.2 |
| 1.0 | 2 | 7/0.43 | 18.1 | 18.2 |
| 1.0 | 3 | 32/0.20 | 19.5 | 20.0 |
| 1.5 | 1 | 1/1.38 | 12.1 | 12.2 |
| 1.5 | 2 | 7/0.52 | 12.1 | 12.2 |
| 1.5 | 3 | 30/0.25 | 13.3 | 13.7 |
| 2.5 | 1 | 1/1.78 | 7.41 | 7.56 |
| 2.5 | 2 | 7/0.68 | 7.41 | 7.56 |
| 2.5 | 3 | 50/0.25 | 7.98 | 8.21 |
| 4 | 1 | 1/2.25 | 4.61 | 4.70 |
| 4 | 2 | 7/0.85 | 4.61 | 4.70 |
| 6 | 1 | 1/2.76 | 3.08 | 3.11 |
| 6 | 2 | 7/1.04 | 3.08 | 3.11 |
| 10 | 2 | 7/1.35 | 1.83 | 1.84 |
表1 導體結構及直流電阻
| 標稱截面 | 絕緣標稱厚度 | 絕緣電阻Ω/KM≥ | |
| 20℃ | 70℃ | ||
| PVC | PVC | ||
| 0.5 | 0.6 | 13 | 0.013 |
| 0.75 | 0.6 | 12 | 0.012 |
| 1.0 | 0.6 | 11 | 0.011 |
| 1.5 | 0.7 | 11 | 0.011 |
| 2.5 | 0.8 | 10 | 0.010 |
| 4 | 0.8 | 8.5 | 0.0085 |
| 6 | 0.8 | 7 | 0.0070 |
| 10 | 1.0 | 6.5 | 0.0065 |
產品命名
1）電纜型號用字母及數字含義
K .............................................................. 控制系列代號
V ............................................................... 聚氯乙烯
YJ .............................................................. 交聯聚乙烯
V ............................................................... 聚氯乙烯
Y ............................................................... 聚乙烯
P ............................................................... 編織屏蔽
P2 ............................................................... 銅帶屏蔽
P3 ............................................................... 鋁塑復合薄膜屏蔽
R ................................................................. 軟結構
2 .................................................................. 雙鋼帶鎧裝
3 .................................................................. 鋼絲鎧裝
2 .................................................................. 聚氯乙烯外護套
3 .................................................................. 聚乙烯外護套
2）產品表示方法
產品用型號、規格和標準標號表示。
示例：
a）銅芯交聯聚乙烯絕緣聚氯乙烯護套銅帶屏蔽控制電纜，固定敷設用，額定電壓450/750、24芯、1.5mm2、銅帶屏蔽，無綠/黃雙色絕緣線芯，表示：KYJVP2-450/750 24X1.5 GB/T9330.3-2008
b）銅芯交聯聚乙烯絕緣聚氯乙烯護套控制電纜，固定敷設用，額定電壓450/750V、24芯、1.5mm2、有綠/黃雙色絕緣線芯，表示：第1種導體結構：KVV-450/750 23X1.5+1X1.5 GB/T9330.0-2008
c）聚氯乙烯絕緣鋼帶鎧裝聚氯乙烯護套控制電纜，額定電壓450/750V，7芯，標稱截面1.5mm2，表示為：KV22-450/750 7X1.5 GB/T9330-2008
產品型號、名稱和使用范圍（見表3）
表3 產品型號、名稱和使用范圍
| 型號 | 名稱 | 使用范圍 |
| KVV | 鋼芯聚氯乙烯絕緣聚氯乙烯護套控制電纜 | 敷設在室內、電纜溝、管道固定場合 |
| KVVP | 鋼芯聚氯乙烯絕緣聚氯乙烯護套編織屏蔽控制電纜 | 敷設在室內、電纜溝、管道等要求屏蔽的固定場合 |
| KVVP2 | 鋼芯聚氯乙烯絕緣聚氯乙烯護套銅帶屏蔽控制電纜 | 敷設在室內、電纜溝、管道等要求屏蔽的固定場合 |
| KVV22 | 鋼芯聚氯乙烯絕緣聚氯乙烯護套鋼帶鎧裝控制電纜 | 敷設在室內、電纜溝、管道、直埋等能承受較大機械外力等固定場合 |
| KVVR | 鋼芯聚氯乙烯絕緣聚氯乙烯護套控制軟電纜 | 敷設在室內移動要求柔軟的場合 |
| KYJV | 鋼芯交聯聚乙烯絕緣聚氯乙烯護套控制電纜 | 敷設在室內、電纜溝、管道固定場合 |
| KYJVP | 鋼芯交聯聚乙烯絕緣聚氯乙烯護套編織屏蔽控制電纜 | 敷設在室內、電纜溝、管道等要求屏蔽的固定場合 |
| 注：未列出的電纜型號可按GB/T9330.1-2008標準中的規定進行組合 | ||
產品規格（見表4）
| 型號 | 額定電壓（V） | 導體標稱截面（mm2） | |||||||
| 0.5 | 0.75 | 1.0 | 1.5 | 2.5 | 4 | 6 | 10 | ||
| 芯數 | |||||||||
KVV KVVP KYJV KYJVP | 450/750 | 4~61 | 2~61 | 2~14 | 2~10 | ||||
KVVP2 KYJVP2 | 4~61 | 4~14 | 4~10 | ||||||
KVV22 KYJV22 | 7~61 | 4~61 | 4~14 | 4~10 | |||||
| KVVR | 4~61 | ||||||||
| KVVRP | 4~61 | 4~48 | |||||||
產品相關性能參數（見表5）
表5 產品相關性能參數
| 芯數及標稱截面（mm2） | 電纜計算外徑 | 電纜計算重量（kg/km） | ||||||||||
| KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | |
| 2X0.75 | 8.1 | 9.3 | — | — | — | — | 61 | 93 | — | — | — | — |
| 2X1.0 | 8.4 | 9.6 | — | — | — | — | 69 | 103 | — | — | — | — |
| 2X1.5 | 9.4 | 10.6 | — | — | — | — | 85 | 138 | — | — | — | — |
| 2X2.5 | 10.8 | 11.9 | — | — | — | — | 116 | 180 | — | — | — | — |
| 2X4 | 11.8 | 13.9 | — | — | — | — | 154 | 230 | — | — | — | — |
| 2X6 | 13.0 | 15.0 | — | — | — | — | 199 | 275 | — | — | — | — |
| 2X10 | 17.5 | 19.0 | — | — | — | — | 373 | 455 | — | — | — | — |
| 3X0.5 | 8.0 | 9.5 | — | — | — | — | 64 | 90 | — | — | — | — |
| 芯數及標稱截面（mm2） | 電纜計算外徑 | 電纜計算重量（kg/km） | ||||||||||
| KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | |
| 3X0.75 | 8.4 | 9.6 | — | — | — | — | 74 | 102 | — | — | — | — |
| 3X1.0 | 8.8 | 10.0 | — | — | — | — | 85 | 116 | — | — | — | — |
| 3X1.5 | 9.8 | 11.5 | — | — | — | — | 107 | 154 | — | — | — | — |
| 3X2.5 | 11.4 | 13.0 | — | — | — | — | 151 | 208 | — | — | — | — |
| 3X4 | 12.5 | 15.0 | — | — | — | — | 234 | 271 | — | — | — | — |
| 3X6 | 14.4 | 16.5 | — | — | — | — | 291 | 312 | — | — | — | — |
| 3X10 | 18.5 | 20.0 | — | — | — | — | 473 | 561 | — | — | — | — |
| 4X0.5 | 8.4 | 10.0 | — | — | 9.0 | 10.5 | 79 | 104 | — | — | 79 | 109 |
| 4X0.75 | 9.1 | 10.3 | 10.2 | — | 9.3 | 11.0 | 82 | 118 | 102 | — | 99 | 139 |
| 4X1.0 | 9.5 | 11.5 | 10.6 | — | 11.0 | 11.5 | 102 | 148 | 117 | — | 113 | 155 |
| 4X1.5 | 10.7 | 11.9 | 11.6 | — | 11.5 | 12.5 | 133 | 184 | 150 | — | 145 | 194 |
| 4X2.5 | 12.4 | 14.4 | 13.2 | — | 13.0 | 15.0 | 194 | 251 | 214 | — | 201 | 264 |
| 4X4 | 14.3 | 15.7 | 15.2 | 18.5 | — | — | 278 | 356 | 300 | 465 | — | — |
| 4X6 | 15.6 | 17.0 | 16.2 | 19.0 | — | — | 367 | 447 | 392 | 568 | — | — |
| 4X10 | 20.0 | 22.0 | 21.2 | 25.0 | — | — | 606 | 702 | 620 | 875 | — | — |
| 5X0.5 | 9.2 | 10.5 | 10.4 | — | 9.6 | 11.0 | 88 | 132 | 102 | — | 92 | 136 |
| 5X0.75 | 9.8 | 11.0 | 10.8 | — | 10.5 | 11.2 | 102 | 149 | 118 | — | 119 | 161 |
| 5X1.0 | 10.2 | 11.4 | 11.2 | — | 11.0 | 12.0 | 121 | 172 | 138 | — | 132 | 184 |
| 5X1.5 | 11.6 | 12.8 | 12.2 | — | 11.9 | 13.5 | 157 | 217 | 175 | — | 171 | 231 |
| 5X2.5 | 14.1 | 15.5 | 15.2 | — | 14.3 | 16.0 | 246 | 319 | 263 | — | 262 | 343 |
| 5X4 | 15.5 | 17.5 | 16.2 | 19.5 | — | — | 334 | 418 | 358 | 533 | — | — |
| 5X6 | 17.0 | 19.0 | 18.0 | 21.5 | — | — | 444 | 531 | 691 | 682 | — | — |
| 5X10 | 22.5 | 24.0 | 23.8 | 26.5 | — | — | 755 | 849 | 1045 | 1041 | — | — |
| 7X0.5 | 10.0 | 11.0 | 11.2 | — | 10.5 | 11.5 | 108 | 153 | 123 | — | 115 | 160 |
| 7X0.75 | 10.5 | 11.7 | 11.6 | 13.7 | 11.0 | 12.5 | 128 | 177 | 145 | 292 | 147 | 195 |
| 7X1.0 | 11.0 | 13.0 | 12.2 | 14.2 | 11.5 | 13.0 | 153 | 205 | 171 | 317 | 170 | 221 |
| 7X1.5 | 12.5 | 14.5 | 13.6 | 17.5 | 13.0 | 15.0 | 205.5 | 263 | 224 | 384 | 222 | 281 |
| 7X2.5 | 16.0 | 17.0 | 16.3 | 18.9 | 16.0 | 17.5 | 317 | 389 | 341 | 503 | 339 | 412 |
| 7X4 | 16.5 | 18.5 | 17.9 | 20.9 | — | — | 447 | 518 | 473 | 643 | — | — |
| 7X6 | 18.0 | 20.5 | 19.2 | 22.5 | — | — | 598 | 676 | 618 | 836 | — | — |
| 7X10 | 24.0 | 26.0 | 25.0 | 28.5 | — | — | 994 | 1106 | 1033 | 1283 | — | — |
| 8X0.5 | 11.0 | 12.2 | 11.7 | 16.0 | 11.5 | 13.0 | 120 | 172 | 140 | 278 | 128 | 178 |
| 8X0.75 | 11.6 | 13.5 | 13.2 | 16.5 | 12.0 | 13.5 | 143 | 197 | 161 | 309 | 167 | 218 |
| 8X1.5 | 14.5 | 16.5 | 15.6 | 18.5 | 15.0 | 17.0 | 247 | 315 | 269 | 422 | 270 | 339 |
| 8X2.5 | 16.1 | 18.5 | 17.6 | 21.0 | 17.5 | 19.0 | 357 | 438 | 382 | 559 | 381 | 464 |
| 8X4 | 18.0 | 21.0 | 19.2 | 23.0 | — | — | 494 | 584 | 518 | 739 | — | — |
| 8X6 | 20.1 | 23.5 | 21.2 | 24.9 | — | — | 684 | 785 | 716 | 936 | — | — |
| 芯數及標稱截面（mm2） | 電纜計算外徑 | 電纜計算重量（kg/km） | ||||||||||
| KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | |
| 2X0.75 | 8.1 | 9.3 | — | — | — | — | 61 | 93 | — | — | — | — |
| 2X1.0 | 8.4 | 9.6 | — | — | — | — | 69 | 103 | — | — | — | — |
| 2X1.5 | 9.4 | 10.6 | — | — | — | — | 85 | 138 | — | — | — | — |
| 2X2.5 | 10.8 | 11.9 | — | — | — | — | 116 | 180 | — | — | — | — |
| 2X4 | 11.8 | 13.9 | — | — | — | — | 154 | 230 | — | — | — | — |
| 2X6 | 13.0 | 15.0 | — | — | — | — | 199 | 275 | — | — | — | — |
| 2X10 | 17.5 | 19.0 | — | — | — | — | 373 | 455 | — | — | — | — |
| 3X0.5 | 8.0 | 9.5 | — | — | — | — | 64 | 90 | — | — | — | — |
| 芯數及標稱截面（mm2） | 電纜計算外徑 | 電纜計算重量（kg/km） | ||||||||||
| KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | |
| 8X10 | 27.0 | 29.0 | 28.2 | 31.5 | — | — | 1210 | 1261 | 1159 | 1450 | — | — |
| 10X0.5 | 11.5 | 14.5 | 13.0 | 17.0 | 12.5 | 14.5 | 146 | 203 | 166 | 320 | 156 | 211 |
| 10X0.75 | 12.9 | 15.0 | 14.0 | 18.0 | 13.3 | 15.3 | 174 | 235 | 195 | 361 | 200 | 261 |
| 10X1.0 | 14.3 | 15.7 | 15.2 | 18.5 | 15.0 | 16.5 | 229 | 296 | 251 | 407 | 251 | 321 |
| 10X1.5 | 16.3 | 18.0 | 17.2 | 20.5 | 17.0 | 18.5 | 302 | 383 | 327 | 500 | 329 | 408 |
| 10X2.5 | 19.1 | 21.5 | 19.0 | 23.5 | 19.3 | 20.7 | 437 | 528 | 467 | 689 | 467 | 561 |
| 10X4 | 20.1 | 23.5 | 21.5 | 25.0 | — | — | 629 | 733 | 663 | 887 | — | — |
| 10X6 | 24.4 | 26.5 | 23.4 | 27.0 | — | — | 846 | 957 | 883 | 1129 | — | — |
| 10X10 | 30.5 | 32.5 | 31.5 | 35.0 | — | — | 1375 | 1541 | 1425 | 1809 | — | — |
| 12X0.5 | 12.5 | 15.0 | 13.5 | — | 13.0 | 15.0 | 165 | 223 | 185 | — | 176 | 234 |
| 12X0.75 | 13.9 | 15.3 | 14.5 | 18.0 | 14.3 | 15.7 | 218 | 285 | 240 | 390 | 252 | 315 |
| 12X1.0 | 14.7 | 16.1 | 15.5 | 19.0 | 15.5 | 17.0 | 259 | 330 | 282 | 443 | 288 | 358 |
| 12X1.5 | 16.7 | 18.1 | 17.5 | 20.5 | 17.2 | 19.0 | 346 | 425 | 372 | 548 | 377 | 464 |
| 12X2.5 | 19.6 | 22.0 | 20.5 | 23.5 | 20.5 | 22.5 | 505 | 559 | 536 | 763 | 540 | 637 |
| 12X4 | 22.8 | 24.5 | 23.0 | 25.5 | — | — | 729 | 838 | 764 | 995 | — | — |
| 12X6 | 25.2 | 27.0 | 24.5 | 28.0 | — | — | 987 | 1103 | 1025 | 1280 | — | — |
| 14X0.5 | 14.0 | 15.5 | 14.5 | — | 13.5 | 16.0 | 205 | 269 | 226 | — | 198 | 259 |
| 14X0.75 | 14.6 | 16.0 | 15.0 | 18.5 | 15.0 | 16.4 | 243 | 314 | 266 | 423 | 281 | 350 |
| 14X1.0 | 15.4 | 16.8 | 15.5 | 19.5 | 16.0 | 17.5 | 292 | 366 | 316 | 483 | 324 | 398 |
| 14X1.5 | 17.5 | 19.5 | 17.5 | 22.0 | 18.0 | 19.7 | 391 | 475 | 419 | 640 | 427 | 515 |
| 14X2.5 | 21.2 | 22.5 | 20.4 | 24.5 | 21.5 | 22.7 | 576 | 674 | 609 | 846 | 617 | 718 |
| 14X4 | 23.9 | 25.5 | 23.0 | 26.5 | — | — | 834 | 947 | 870 | 1112 | — | — |
| 14X6 | 26.4 | 28.5 | 25.3 | 29.0 | — | — | 1246 | 1254 | 1282 | 1508 | — | — |
| 16X0.5 | 14.5 | 16.0 | 15.0 | — | 15.0 | 16.5 | 227 | 294 | 251 | — | 246 | 309 |
| 16X0.75 | 15.3 | 16.7 | 15.5 | 19.5 | 16.0 | 17.5 | 271 | 343 | 295 | 457 | 312 | 384 |
| 16X1.0 | 16.1 | 17.5 | 16.0 | 20.0 | 17.0 | 18.5 | 326 | 404 | 352 | 525 | 361 | 439 |
| 16X1.5 | 18.4 | 20.5 | 18.5 | 22.5 | 18.9 | 20.3 | 438 | 526 | 467 | 684 | 477 | 569 |
| 16X2.5 | 22.8 | 23.6 | 22.0 | 25.5 | 23.0 | 24.5 | 668 | 773 | 702 | 932 | 707 | 824 |
| 19X0.5 | 15.0 | 17.0 | 15.5 | — | 15.2 | 16.6 | 258 | 328 | 280 | — | 274 | 345 |
| 19X0.75 | 16.5 | 17.4 | 16.0 | 20.0 | 16.5 | 17.9 | 309 | 384 | 334 | 504 | 359 | 434 |
| 19X1.0 | 16.9 | 18.3 | 17.0 | 21.5 | 17.5 | 19.0 | 373 | 454 | 400 | 601 | 413 | 497 |
| 19X1.5 | 19.4 | 22.0 | 19.3 | 23.5 | 20.5 | 21.7 | 504 | 597 | 535 | 761 | 551 | 648 |
| 19X2.5 | 23.9 | 24.7 | 23.0 | 26.5 | 24.2 | 25.0 | 772 | 884 | 808 | 1050 | 862 | 943 |
| 24X0.5 | 17.5 | 18.0 | 18.0 | — | 18.0 | 19.5 | 315 | 396 | 345 | — | 331 | 414 |
| 24X0.75 | 18.4 | 19.8 | 18.5 | 22.5 | 19.0 | 20.4 | 379 | 467 | 408 | 625 | 441 | 536 |
| 24X1.0 | 19.5 | 21.4 | 20.0 | 23.5 | 19.8 | 21.7 | 459 | 554 | 490 | 722 | 516 | 609 |
| 24X1.5 | 23.5 | 25.0 | 22.9 | 26.5 | 23.5 | 25.0 | 540 | 757 | 678 | 920 | 706 | 820 |
| 芯數及標稱截面（mm2） | 電纜計算外徑 | 電纜計算重量（kg/km） | ||||||||||
| KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | KVV | KVVP | KVVP2 | KVV22 | KVVR | KVVRP | |
| 24X2.5 | 27.7 | 28.7 | 26.6 | 30.0 | 28.1 | 29.5 | 960 | 1092 | 1003 | 1280 | 1027 | 1165 |
| 27X0.5 | 17.5 | 19.0 | 18.0 | — | 17.8 | 19.2 | 344 | 426 | 372 | — | 366 | 449 |
| 27X0.75 | 18.5 | 20.2 | 19.0 | 23.5 | 19.4 | 20.8 | 415 | 505 | 445 | 664 | 483 | 576 |
| 27X1.0 | 20.5 | 21.8 | 19.8 | 24.0 | 20.8 | 22.1 | 525 | 623 | 557 | 795 | 562 | 661 |
| 27X1.5 | 24.0 | 26.0 | 23.3 | 27.0 | 24.6 | 25.4 | 711 | 824 | 748 | 988 | 777 | 896 |
| 27X2.5 | 28.3 | 30.0 | 27.1 | 30.5 | 28.6 | 29.6 | 1061 | 1194 | 1105 | 1391 | 1135 | 1275 |
| 30X0.5 | 18.5 | 20.0 | 19.0 | 23.0 | 18.4 | 20.5 | 373 | 459 | 401 | — | 396 | 485 |
| 30X0.75 | 19.4 | 21.3 | 20.0 | 23.5 | 20.6 | 21.9 | 452 | 546 | 523 | 710 | 527 | 623 |
| 30X1.0 | 21.6 | 23.5 | 21.0 | 24.5 | 21.5 | 23.5 | 570 | 674 | 603 | 828 | 637 | 343 |
| 30X1.5 | 24.8 | 26.5 | 24.1 | 27.5 | 25.0 | 27.0 | 776 | 895 | 816 | 1071 | 849 | 974 |
| 30X2.5 | 29.3 | 31.0 | 28.1 | 31.5 | 29.7 | 30.7 | 1165 | 1304 | 1210 | 1505 | 1245 | 1391 |
| 37X0.5 | 19.5 | 22.0 | 20.0 | — | 19.7 | 22.0 | 462 | 556 | 493 | — | 470 | 567 |
| 37X0.75 | 21.9 | 23.0 | 21.4 | 25.0 | 21.5 | 23.3 | 558 | 662 | 591 | 814 | 652 | 758 |
| 37X1.0 | 23.2 | 24.5 | 22.5 | 26.0 | 23.5 | 25.0 | 681 | 792 | 717 | 955 | 759 | 873 |
| 37X1.5 | 25.0 | 28.0 | 25.8 | 29.5 | 27.4 | 28.4 | 932 | 1059 | 973 | 1242 | 1019 | 1152 |
| 37X2.5 | 29.0 | 33.0 | 30.8 | 35.0 | 31.9 | 33.6 | 1405 | 1557 | 1453 | 2150 | 1505 | 1663 |
| 44X0.5 | 22.5 | 24.0 | 23.0 | — | 22.4 | 24.5 | 539 | 645 | 574 | — | 573 | 683 |
| 44X0.75 | 23.0 | 26.0 | 23.7 | 27.0 | 24.5 | 26.1 | 654 | 769 | 691 | 937 | 764 | 883 |
| 44X1.0 | 25.8 | 27.0 | 24.9 | 28.5 | 26.2 | 27.2 | 798 | 923 | 838 | 1103 | 891 | 1021 |
| 44X1.5 | 29.7 | 30.7 | 28.7 | 33.0 | 30.0 | 32.0 | 1095 | 1238 | 1141 | 1487 | 1198 | 1351 |
| 44X2.5 | 36.0 | 38.0 | 34.3 | 39.0 | 36.0 | 38.0 | 1702 | 1875 | 1756 | 2511 | 1823 | 2008 |
| 48X0.5 | 22.5 | 25.0 | 23.5 | — | 23.0 | 24.5 | 576 | 684 | 611 | — | 613 | 724 |
| 48X0.75 | 24.7 | 26.0 | 24.0 | 27.5 | 25.0 | 26.4 | 700 | 816 | 739 | 986 | 820 | 941 |
| 48X1.0 | 24.5 | 27.0 | 25.5 | 29.0 | 26.6 | 28.0 | 858 | 985 | 899 | 1168 | 958 | 1089 |
| 48X1.5 | 28.5 | 32.0 | 29.5 | 34.0 | 30.5 | 32.1 | 1180 | 1324 | 1227 | 1900 | 1294 | 1447 |
| 48X2.5 | 34.0 | 38.0 | 35.5 | 39.5 | 36.5 | 38.2 | 1840 | 2019 | 1896 | 2675 | 1964 | 2153 |
| 52X0.5 | 23.0 | 26.0 | 23.5 | — | 23.5 | 24.7 | 620 | 727 | 658 | — | 655 | 770 |
| 52X0.75 | 23.5 | 27.0 | 24.6 | 28.0 | 25.5 | 27.1 | 750 | 871 | 789 | 1047 | 879 | 1004 |
| 52X1.0 | 26.9 | 27.9 | 26.0 | 29.5 | 27.3 | 29.0 | 918 | 1049 | 960 | 1237 | 1027 | 1163 |
| 52X1.5 | 31.0 | 33.0 | 30.6 | 35.0 | 31.0 | 33.0 | 1268 | 1418 | 1317 | 2032 | 1386 | 1546 |
| 52X2.5 | 35.0 | 40.0 | 36.0 | 40.5 | 37.5 | 39.5 | 1974 | 2156 | 2032 | 2827 | 2113 | 2304 |
| 61X0.5 | 24.5 | 27.5 | 25.0 | — | 25.2 | 27.0 | 705 | 821 | 742 | — | 750 | 872 |
| 61X0.75 | 26.8 | 28.5 | 26.0 | 29.5 | 27.0 | 28.6 | 860 | 989 | 892 | 1197 | 1011 | 1142 |
| 61X1.0 | 26.5 | 30.0 | 27.0 | 31.0 | 28.8 | 30.5 | 1057 | 1195 | 1101 | 1391 | 1182 | 1326 |
| 61X1.5 | 31.5 | 35.0 | 32.3 | 36.5 | 33.5 | 35.5 | 1507 | 1671 | 1558 | 2270 | 1650 | 1823 |
| 61X2.5 | 37.5 | 42.0 | 37.9 | 42.5 | 40.7 | 42.5 | 2317 | 2515 | 1661 | 3188 | 2479 | 2660 |
